What’s the Difference Between Beta and Alpha Silicon Carbide Powder?
Silicon carbide powder (SiC powder) is a high-hardness ceramic material used in abrasives, refractories, advanced ceramics, semiconductor components, and other high-temperature applications. Silicon carbide (SiC) powder is widely used in advanced ceramics and abrasive industries due to its high hardness, thermal stability, and chemical resistance. In industrial practice, it is mainly classified into beta silicon carbide (β-SiC) and alpha silicon carbide (α-SiC), which differ in crystal structure and processing behavior.
Although both phases share the same chemical composition, they show clear differences during powder synthesis and ceramic processing. β-SiC is generally associated with finer particle size and higher sintering activity, making it suitable for advanced ceramic and semiconductor-related applications. In contrast, α-SiC is more commonly used in abrasive and refractory applications where high-temperature stability and wear resistance are more critical.
The selection between the two is therefore mainly determined by processing requirements and final application conditions rather than chemistry alone.
Alpha vs Beta Silicon Carbide Powder: Key Differences
| Property | β-SiC Powder | α-SiC Powder |
| Crystal structure | Cubic 3C-SiC | Hexagonal or rhombohedral polytypes |
| Common polytype | 3C | 4H, 6H and other α-SiC polytypes |
| Thermal stability | Can transform to α-SiC at high temperature | Thermodynamically stable phase |
| Typical powder characteristics | Fine particles and high surface area are commonly available | Wide range of commercial grain sizes |
| Sintering behavior | Generally high sintering activity in fine-powder systems | Often requires controlled sintering conditions and additives |
| Common applications | Advanced ceramics, semiconductor ceramics, precision ceramic processing | Abrasives, refractories, wear-resistant and high-temperature applications |
| Main selection factors | Particle size, purity, morphology and sintering behavior | Grain size, purity, crystallinity, hardness and thermal stability |
What Is Silicon Carbide Powder?
Silicon carbide powder is a ceramic powder composed of silicon and carbon with the chemical formula SiC. It is known for its high hardness, thermal stability, chemical resistance, and relatively high thermal conductivity, making it useful across abrasive, refractory, ceramic, semiconductor, and high-temperature applications.
Commercial silicon carbide powder can differ significantly in crystal phase, purity, particle size, particle size distribution, morphology, and surface characteristics. These parameters can affect powder processing, sintering behavior, packing density, and the properties of the final ceramic component.

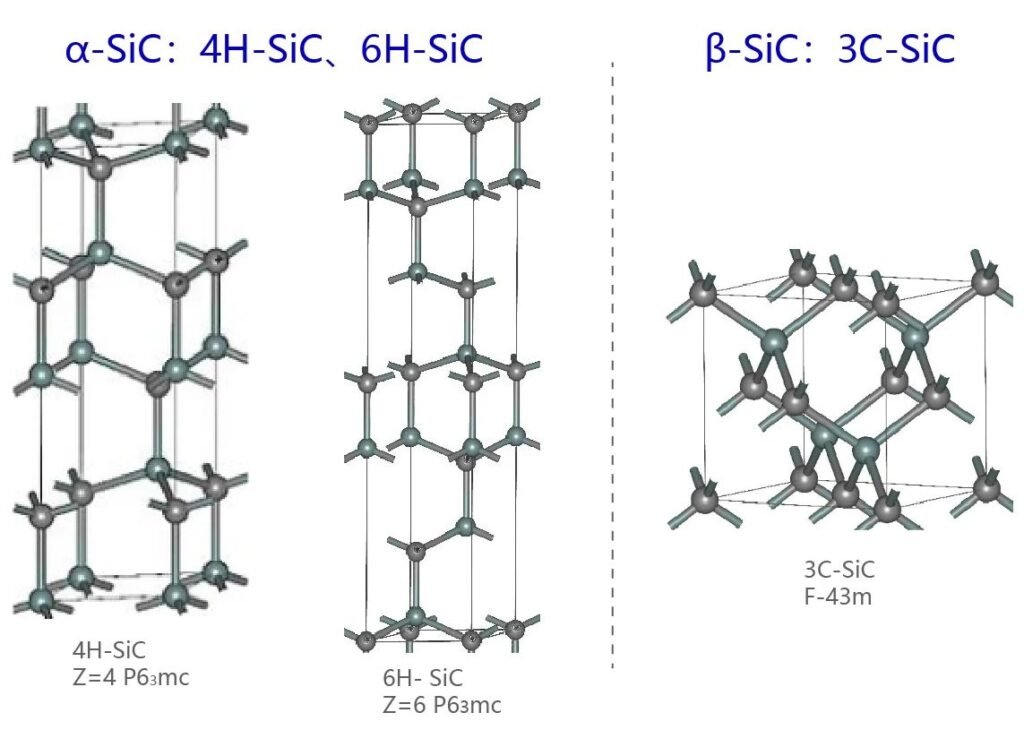

From a crystal-phase perspective, silicon carbide powder is commonly discussed as α-SiC and β-SiC. β-SiC is the cubic 3C polytype, while α-SiC includes several hexagonal and rhombohedral polytypes, including 4H and 6H.
However, crystal phase is only one part of silicon carbide powder selection. For industrial applications, the required particle size and distribution, purity, morphology, and processing method should be evaluated together with the intended application.
For example, fine and high-purity silicon carbide powder may be selected for advanced ceramic processing, while controlled coarse or medium-grain SiC powder is commonly used for abrasive and refractory applications.
Why Beta Silicon Carbide Powder Is Preferred for Advanced Ceramics？
Higher Sintering Activity
Fine β-SiC powder is commonly selected for advanced ceramic processing because its small particle size, high specific surface area, and relatively high sintering activity can support densification and microstructure control. Compared with α-SiC, β-SiC exhibits higher surface area and surface energy, which improves densification during ceramic processing.
In pressureless sintered SiC systems, β-SiC is commonly used to achieve densification at relatively lower temperatures (typically 1900–2100°C depending on additives), while reducing residual porosity to below 2–5% in optimized systems. These characteristics make it suitable for high-reliability ceramic components used in semiconductor and thermal management applications.
Better Powder Control for Precision Ceramics
Advanced ceramic applications require tight control of powder characteristics, including particle size distribution below 1 μm, impurity levels typically below 0.5 wt%, and stable sintering behavior. β-SiC powders are more suitable for achieving these targets due to their high reactivity and uniform morphology.
They are widely applied in semiconductor ceramic components, plasma-resistant parts, wafer processing tools, and ceramic additive manufacturing systems where dimensional stability and purity are critical performance requirements.
β→α Phase Transformation Behavior
During high-temperature sintering above approximately 2000°C, β-SiC can transform into thermodynamically stable α-SiC polytypes (4H/6H structures). This phase transformation influences grain growth, mechanical strength, and thermal conductivity of the final ceramic.The extent and effect of the β→α transformation depend on factors such as temperature, holding time, starting powder characteristics, and sintering additives. Therefore, the transformation should be considered as part of the overall microstructure-control strategy rather than as an isolated material property.
Controlled β→α transformation is often used to improve fracture toughness, which can increase from ~3 MPa·m¹ᐟ² to 4–5 MPa·m¹ᐟ² in optimized microstructures, depending on processing conditions and additives.
Why Alpha Silicon Carbide Dominates Abrasive and Refractory Industries？
- Superior High-Temperature Stability
α-SiC is the thermodynamically stable phase of silicon carbide, typically formed at temperatures above ~2000°C via high-temperature processes such as the Acheson method. It exists mainly as 4H and 6H polytypes, offering strong structural stability under extreme conditions.
Compared with β-SiC, α-SiC maintains hardness in the range of ~25–28 GPa and shows good oxidation resistance up to ~1600–1700°C in air, making it suitable for long-term high-temperature applications.
- Why Abrasive Applications Prefer α-SiC

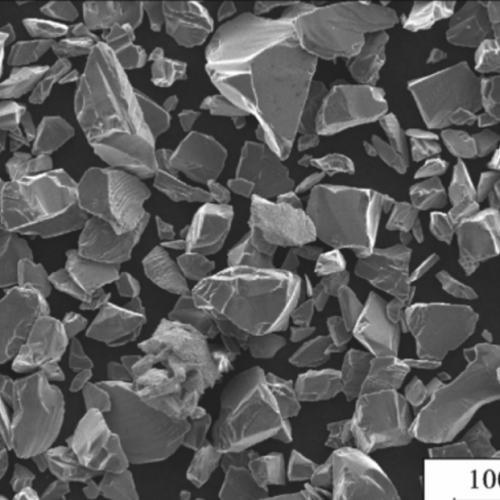

α-SiC is widely used in abrasive systems due to its high hardness and stable crystal structure. It performs well in grinding wheels, lapping media, blasting materials, and polishing applications, where resistance to mechanical wear is critical. Commercial abrasive SiC typically exhibits Mohs hardness around ~9–9.5 and is mainly produced via the Acheson process.

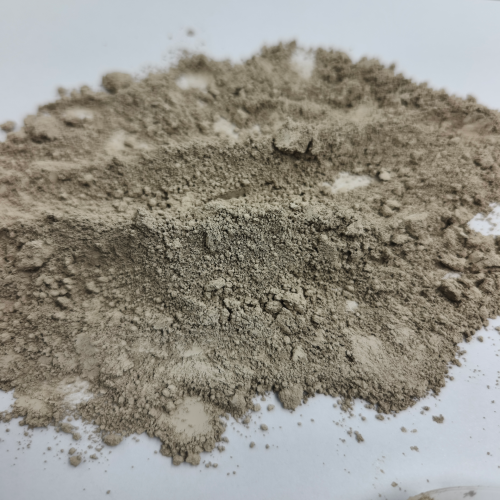

- Better Suitability for Refractory Applications
In refractory environments, materials are exposed to thermal cycling, oxidation, and mechanical stress. α-SiC maintains stability up to ~1500–1600°C in continuous service, making it suitable for kiln furniture, furnace linings, and crucibles used in high-temperature industrial systems.
SiC Powder Production Routes and Crystal Phase Formation
The industrial performance of silicon carbide powder is closely related to its synthesis route, as different production methods directly influence particle size, purity, and crystal phase formation.
β-SiC Production
β-SiC is typically synthesized at relatively lower temperatures using controlled chemical processes designed to produce fine and reactive powders. Common production routes include carbothermal reduction, plasma-assisted synthesis, and gas-phase deposition reactions.
In carbothermal reduction, silica (SiO₂) reacts with carbon sources at elevated temperatures under controlled conditions to form fine SiC particles. Plasma synthesis and gas-phase routes further enhance reaction kinetics, allowing the formation of ultrafine powders with narrow particle size distribution and high surface area.
These methods generally operate in the range of ~1400–1800°C and are preferred when high purity, submicron particle size, and good sintering activity are required, especially for advanced ceramic and semiconductor-related applications.
α-SiC Production
α-SiC is primarily produced through the Acheson process, which is a high-temperature solid-state reaction method. In this process, silica sand and petroleum coke are reacted in a resistance furnace at temperatures typically above ~2000°C.
The extreme thermal environment promotes complete crystallization and the formation of thermodynamically stable α-SiC polytypes. Compared with β-SiC routes, the Acheson process generally produces coarser particles with higher crystallinity and superior thermal stability, making it suitable for abrasive and refractory applications.
How Do Particle Size and Purity Affect Silicon Carbide Powder Selection?
Crystal phase is only one factor when selecting silicon carbide powder. Particle size, particle size distribution, purity, morphology, and surface characteristics can also strongly affect powder processing and final performance.
| Application | Parameters to Check |
| Advanced ceramics | Particle size, particle size distribution, purity, morphology, and sintering behavior |
| Semiconductor ceramics | Purity, trace impurities, particle size, morphology, and process compatibility |
| Abrasives | Hardness, grain size, crystallinity, purity, and particle shape |
| Refractories | Thermal stability, grain size, purity, oxidation resistance, and packing behavior |
For advanced ceramic applications, fine particle size and controlled particle size distribution can support efficient packing and densification. Purity is particularly important for semiconductor-related components, where trace impurities may affect electrical, thermal, or plasma-exposed performance.
For abrasive and refractory applications, particle size distribution, crystallinity, hardness, and thermal stability may be more important than simply selecting α-SiC or β-SiC.
Which Silicon Carbide Powder Is Better?
Neither β-SiC nor α-SiC is universally superior.The correct choice depends on application requirements.
| Application | Preferred Phase |
| Advanced ceramics | Beta Silicon Carbide |
| Semiconductor ceramics | Beta Silicon Carbide |
| Ceramic 3D printing | Beta Silicon Carbide |
| Abrasives | Alpha Silicon Carbide |
| Refractory materials | Alpha Silicon Carbide |
| High-temperature wear systems | Alpha Silicon Carbide |
Understanding the relationship between crystal structure, powder processing, and final application is essential for selecting the correct silicon carbide material.
What to Check Before Selecting Silicon Carbide Powder
For industrial SiC powder selection, it is useful to evaluate the material specification rather than choosing only by α-SiC or β-SiC designation. Particle size distribution, purity, crystal phase, morphology, and application-specific processing requirements should be reviewed together.
A fine β-SiC powder may be suitable for one ceramic process, while a high-purity α-SiC grade with a controlled particle size distribution may be more appropriate for another. ULPMAT provides silicon carbide powder in different purity, particle-size, and material configurations for applications where these parameters need to be matched to specific processing requirements.
Conclusion
Although beta silicon carbide and alpha silicon carbide share the same chemical composition, their industrial roles are fundamentally different.β-SiC dominates advanced ceramic processing because of its fine particle morphology and superior sintering behavior.
α-SiC remains the preferred material for abrasive and refractory applications because of its outstanding thermal stability and wear resistance.
As advanced ceramics, semiconductor systems, and thermal management technologies continue evolving, understanding the engineering differences between β-SiC and α-SiC powders will become increasingly important for modern material selection. For industrial silicon carbide powder selection, however, crystal phase should not be considered in isolation. Particle size, purity, particle size distribution, morphology, and processing requirements can be equally important in determining whether a particular SiC powder is suitable for the intended application.
FAQs
Silicon carbide powder (SiC powder) is widely used in abrasives, refractories, advanced ceramics, semiconductor-related components, thermal management materials, and other high-temperature applications. Its high hardness, thermal stability, chemical resistance, and thermal conductivity make it suitable for demanding industrial processes.
Alpha and beta silicon carbide powders have the same chemical composition but different crystal structures and processing characteristics. β-SiC has a cubic 3C crystal structure and is commonly associated with fine particle size and high sintering activity, while α-SiC includes hexagonal and rhombohedral polytypes such as 4H and 6H and is known for high-temperature stability.
The selection between α-SiC and β-SiC depends on factors such as particle size, purity, morphology, processing method, and final application requirements.
β-SiC powder is commonly selected for advanced ceramic applications because fine β-SiC particles can provide high surface area, good sintering activity, and improved control over ceramic microstructure.
However, the final material selection should not be based only on crystal phase. Particle size distribution, purity, powder morphology, sintering additives, and processing conditions also strongly influence the performance of the final ceramic component.
β-SiC powder is considered suitable for semiconductor ceramic applications because its fine particle characteristics, controlled morphology, and high purity can support the production of ceramic components requiring dimensional stability, thermal performance, and reliable processing behavior.
Typical applications include semiconductor processing components, plasma-resistant parts, wafer handling components, and other precision ceramic systems where material consistency is important.
α-SiC powder is widely used for abrasive and refractory applications because of its high hardness, stable crystal structure, wear resistance, and high-temperature performance.
Its thermal stability and mechanical strength make it suitable for grinding materials, polishing media, kiln furniture, furnace components, and other industrial systems exposed to mechanical stress and elevated temperatures.
Yes. β-SiC can transform into thermodynamically stable α-SiC polytypes during high-temperature treatment. This β→α phase transformation can influence grain growth, microstructure development, mechanical properties, and thermal behavior of the final ceramic material.
The transformation process depends on factors such as temperature, holding time, starting powder characteristics, and sintering additives.
Important factors for silicon carbide powder selection include crystal phase, purity, particle size, particle size distribution, morphology, and application requirements.
For advanced ceramic and semiconductor-related applications, fine particle size, high purity, and controlled powder characteristics are often important. For abrasive and refractory applications, hardness, grain size, crystallinity, thermal stability, and wear resistance may be more critical.
The optimal silicon carbide powder specification depends on the intended processing method and final component performance.
