Lanthanum boride (LaB₆) powder is an advanced rare-earth ceramic material widely used for high-performance electron emission applications. With its low work function, high electron brightness, excellent thermal stability, and good electrical conductivity, LaB6 has become one of the most important thermionic emission materials for scanning electron microscopes (SEM), transmission electron microscopes (TEM), and other electron beam systems.
Compared with conventional tungsten electron sources, LaB₆ provides higher electron emission efficiency and longer operational stability under high-temperature conditions. This makes it a preferred material for applications requiring high-resolution imaging and stable electron beam performance.
1. What Is Lanthanum Boride Powder (LaB6)?
Lanthanum boride powder is a rare-earth hexaboride ceramic material composed of lanthanum and boron with the chemical formula LaB6.
| Property | Value |
| Chemical Formula | LaB₆ |
| CAS Number | 12008-21-8 |
| Molecular Weight | 203.77 g/mol |
| Material Category | Rare-earth boride ceramic |
| Crystal Structure | Cubic CaB₆-type structure |
| Density | Approximately 4.7 g/cm³ |
| Melting Point | Approximately 2715°C |

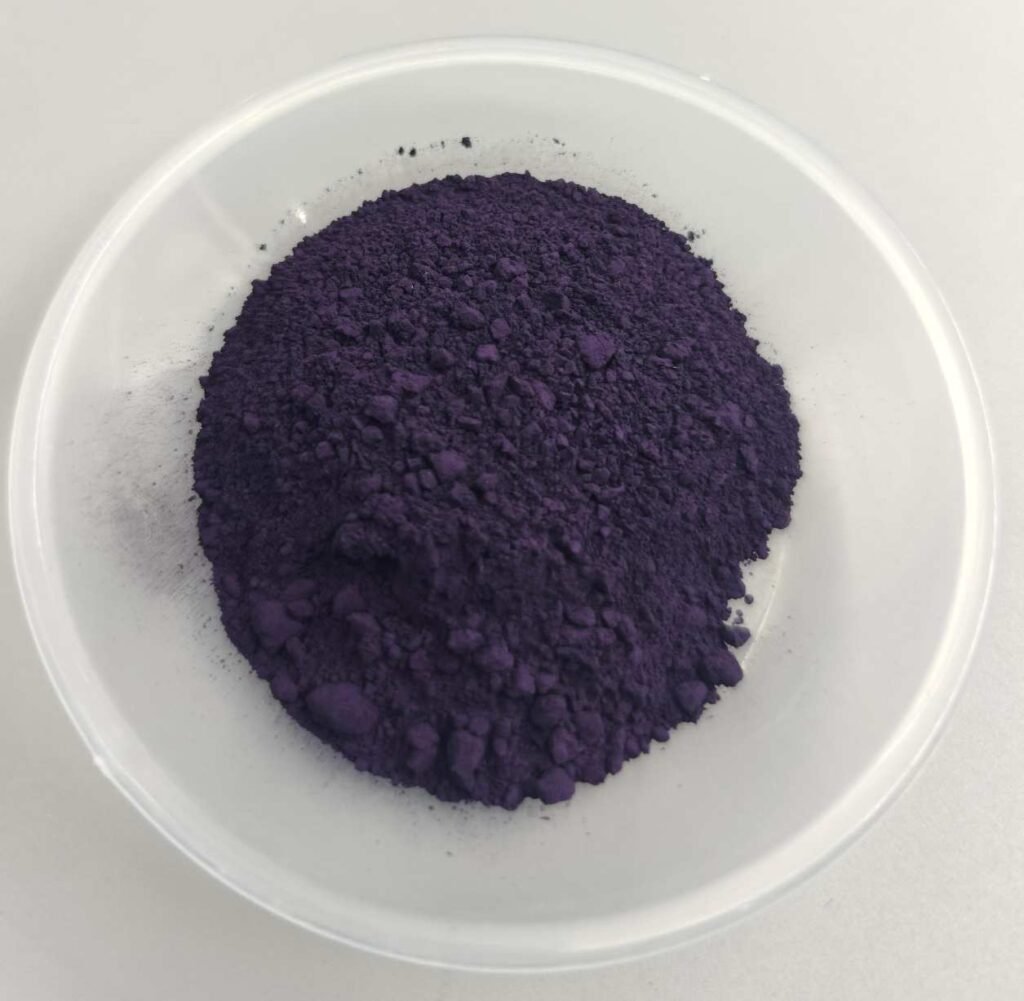

| Appearance | Black to purple powder |
The unique cubic crystal structure consists of lanthanum atoms surrounded by a boron framework. This stable boron-rich structure contributes to the excellent thermal and electronic properties of LaB₆.Unlike many conventional ceramic materials, LaB₆ exhibits metallic-like electrical conductivity, making it suitable for electron emission applications.
Key Properties of Lanthanum Boride (LaB₆)
Lanthanum boride (LaB₆) is widely recognized for its excellent electron emission performance and thermal stability. Its unique properties make it an ideal material for high-performance electron sources.
Low Work Function and Efficient Electron Emission
LaB₆ has a low electron work function of approximately 2.5–2.7 eV, depending on surface conditions and testing methods. This allows electrons to be emitted efficiently at lower operating temperatures, providing stable electron beam generation and improved emission performance.
High Electron Brightness
LaB₆ cathodes offer higher electron brightness compared with traditional tungsten cathodes. This advantage enables better image resolution, improved analytical performance, and more stable electron beams in SEM and TEM applications.
Excellent Thermal Stability
With a high melting point and strong resistance to thermal degradation, LaB6 maintains stable performance under high-temperature operating conditions. Its low evaporation rate and long service lifetime make it suitable for demanding vacuum electronic and electron beam applications.
Main Applications of Lanthanum Boride (LaB₆)
Lanthanum boride (LaB₆) is mainly used as a high-performance electron emission material due to its high brightness, stable emission characteristics, and excellent thermal stability. Its applications cover electron microscopy, electron beam systems, and advanced vacuum electronic technologies.
Scanning Electron Microscopy (SEM)
LaB₆ cathodes are widely used in SEM systems where high electron brightness and stable emission performance are required. They help improve imaging resolution, material analysis accuracy, and long-term instrument stability, making them suitable for applications such as semiconductor inspection and surface characterization.
Transmission Electron Microscopy (TEM)
In TEM applications, a stable electron source is essential for high-resolution structural analysis. LaB₆ cathodes provide consistent electron emission, supporting nanomaterial characterization, advanced microscopy research, and detailed analysis of material structures.
Electron Beam and Vacuum Applications
Beyond microscopy, LaB₆ is also used in electron beam welding, electron beam lithography, vacuum electronic devices, and other high-temperature electronic applications. Its combination of electrical conductivity, low work function, and thermal stability makes it suitable for demanding electron emission environments.
How to Select High Purity Lanthanum Boride Powder?
Selecting suitable LaB₆ powder requires careful evaluation of several key parameters. The purity, particle size, chemical composition, and characterization data can directly influence material performance and application suitability.
| Parameter | Typical Information | Why It Matters |
|---|---|---|
|
Purity |
99%, 99.5%, 99.9% LaB₆ powder |
Higher purity helps reduce impurities and improve reliability in advanced electron emission applications |
|
Particle Size |
Micron powder, fine powder, customized particle size |
Particle size affects powder processing, dispersion, and final material performance |
|
Chemical Composition |
La/B ratio, oxygen content, trace impurities |
Composition control helps maintain consistent electronic and thermal properties |
|
Powder Characterization |

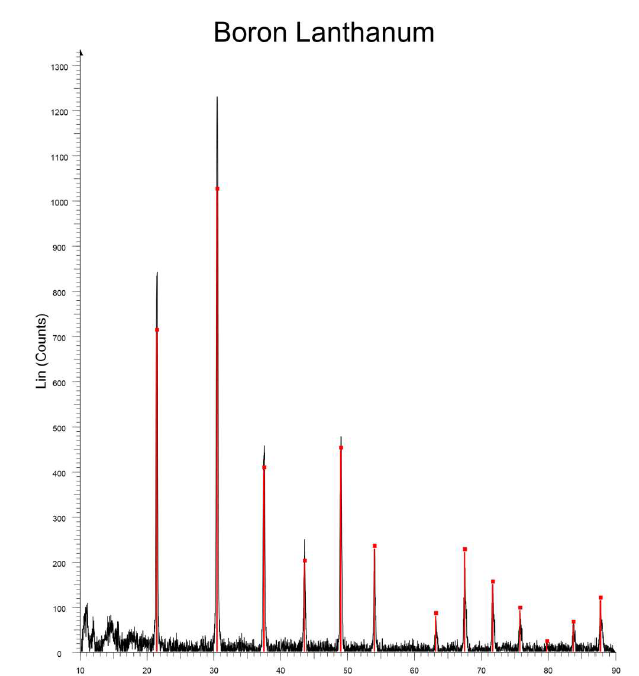

XRD, ICP-OES, SEM, particle size analysis |
Quality testing confirms crystal phase, purity, morphology, and particle size distribution |
For high-performance electron emission applications, users should select LaB₆ powder based on the specific requirements of the equipment, processing method, and expected material performance.
Technical Documents for Lanthanum Boride (LaB₆) Powder
Technical documentation plays a crucial role in material evaluation. We provide the following technical documents:
LaB₆ Powder Technical Data Sheet (TDS)
The TDS provides essential product information, including chemical formula, purity grade, particle size, typical physical properties, composition, and recommended applications. It helps users understand the basic specifications and performance characteristics of LaB₆ powder.
Safety Data Sheet (SDS)
The SDS provides important safety-related information, including material handling instructions, storage conditions, safety precautions, and transportation considerations. It supports proper handling and management throughout the material’s use.
Certificate of Analysis (COA)
The COA provides batch-specific quality verification data, such as chemical composition analysis results, inspection records, and test information. It enables customers to assess material consistency and confirm that the supplied LaB₆ powder meets specified requirements.
Providing complete technical documentation helps you make informed decisions when selecting LaB₆ materials for advanced applications.
FAQs
Lanthanum boride powder is mainly used for electron emission sources in SEM, TEM, electron beam systems, and vacuum electronic devices.
LaB₆ provides lower work function, higher electron brightness, and longer operating stability, making it suitable for high-performance electron emission applications.
The required purity depends on the application. High-resolution electron emission systems generally require higher purity materials.
Key factors include purity, particle size distribution, crystal phase, chemical composition, and powder morphology.
Conclusion
Lanthanum boride powder (LaB₆) is an advanced functional ceramic material with outstanding electron emission properties, high-temperature stability, and excellent electrical performance.Due to its low work function and high electron brightness, LaB6 plays an important role in electron microscopy, semiconductor inspection, and advanced electron beam technologies.When selecting LaB₆ powder, users should evaluate purity, particle size, material characterization data, and technical documentation to ensure the selected material meets their application requirements.
