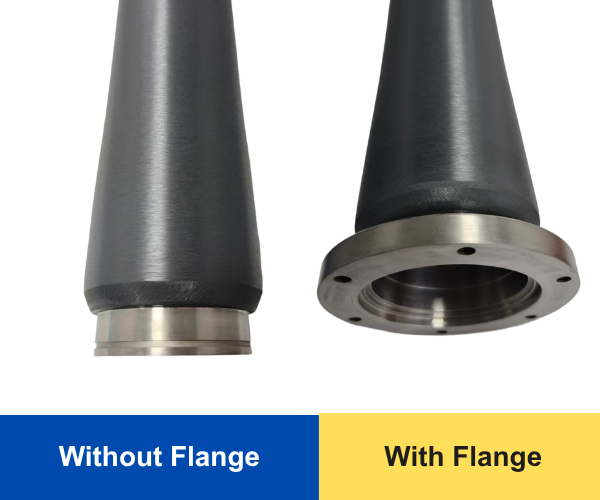

High-Purity Niobium Oxide Rotary Target overview
In modern thin film deposition technologies, especially for optical coatings, semiconductors, and display applications, the quality and performance of the target material directly influence product reliability and efficiency. High-purity Niobium Oxide rotary targets have emerged as a key material due to their excellent chemical stability, high refractive index, thermal resilience, and low defect rates.
Thin films deposited from high-purity Niobium Oxide rotary targets demonstrate superior uniformity, reduced defect density, and enhanced optical properties compared with films deposited from lower purity or planar targets. Additionally, rotary targets offer higher material utilization (70–80%) and improved thickness uniformity, making them ideal for industrial-scale deposition processes.
Key Properties of High-Purity Niobium Oxide Rotary Targets
Purity and Low Impurities
High-purity Niobium Oxide rotary targets typically achieve 99.9% purity. Metallic impurities (Fe, Al, Si) are usually below 0.01%, ensuring deposited films have minimal contamination and stable electrical and optical characteristics.
Optical Performance
- Refractive index: 2.2–2.4 @ 550 nm
- Optical transmittance: ≥95%
These properties make Niobium Oxide suitable for high-performance optical coatings, laser optics, and anti-reflection layers.
Thermal Stability
- Melting point: ~1870°C
- Coefficient of thermal expansion: 7–9 ×10⁻⁶/K
These characteristics ensure stability during high-temperature sputtering, reducing stress and cracking in the deposited films.
Mechanical and Chemical Stability
- Sintered density: ≥95% of theoretical density
- Grain size: 2–5 μm
- Excellent corrosion and oxidation resistance
These features ensure the target maintains structural integrity under prolonged high-power sputtering.
Manufacturing Process
High-purity Niobium Oxide rotary targets undergo rigorous processing to achieve performance and reliability:
- Powder Selection: Particle size 2–5 μm, purity 99.9%
- Cold Isostatic Pressing (CIP): 150–200 MPa for uniform preform density
- High-Temperature Sintering: 1650–1750°C under vacuum or inert atmosphere
- Metal Backing Tube Bonding: Stainless steel, titanium, or copper alloy; 0.2–0.5 mm thickness
- Precision Machining & Inspection: Diameter tolerance ±0.1 mm, surface roughness Ra ≤0.2 μm, density, chemical composition, and grain structure checked

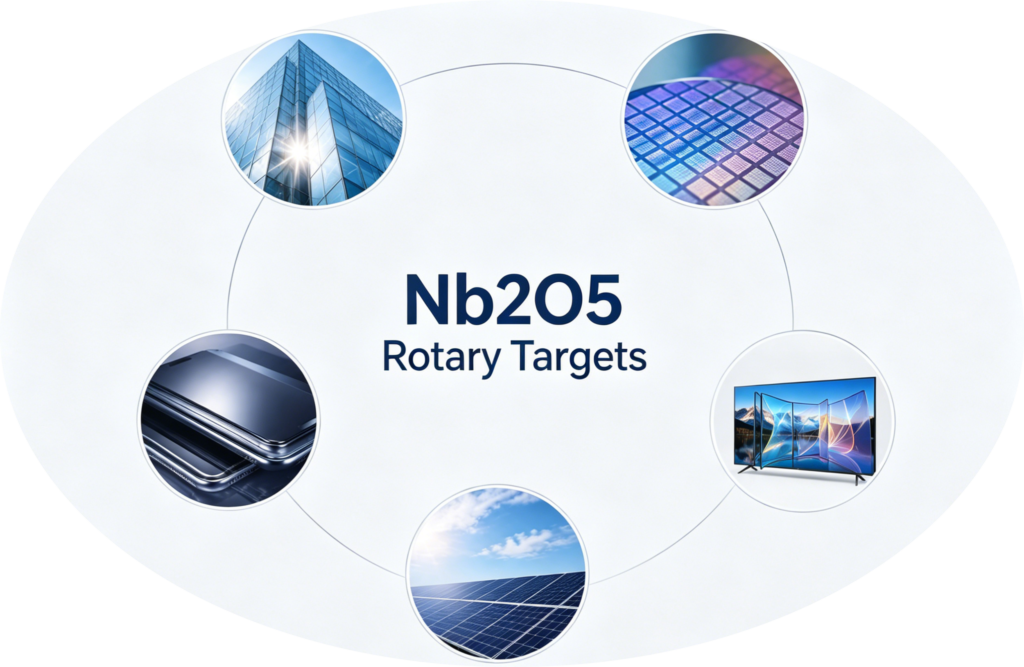

Applications
High-purity Niobium Oxide rotary targets are highly versatile and widely used across industries:
- Optical Coatings: Anti-reflection layers, laser mirrors, AR/VR optics
- Semiconductors: Dielectric layers, capacitors, TFTs, DRAM devices
- Display Technologies: OLED, LCD, touch screens
- Energy & Glass: Low-E architectural glass, thin-film solar cells, smart windows
These rotary targets ensure uniform deposition, superior film quality, and extended service life, supporting high-volume industrial applications.

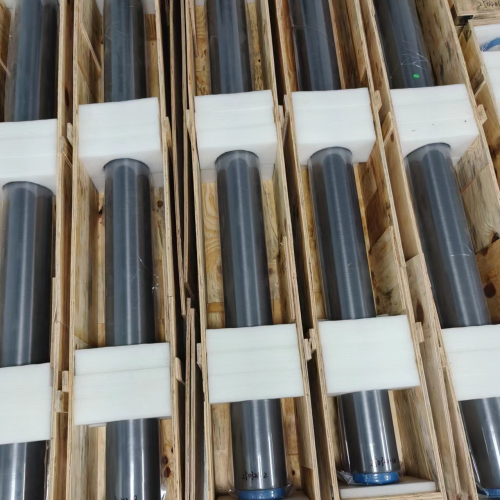

Nb2O5 Rotary Target Packaging
To ensure product stability and safe transportation, high-purity Niobium Oxide rotary targets are packaged using professional industrial protection methods. Each target is carefully cleaned, vacuum-sealed or moisture-protected, and packed with shock-absorbing materials to prevent contamination, surface damage, or mechanical stress during shipping and storage.
- Vacuum or moisture-proof protective packaging
- Shock-resistant foam and reinforced support structures
- Clean-room compatible surface protection
- Export-grade wooden cases for large rotary targets
- Customized packaging available for semiconductor and optical applications
Industry Trends and Future
The demand for high-purity Niobium Oxide rotary targets is growing alongside developments in optical, semiconductor, and display technologies.
Miniaturization and Precision Electronics
Advanced semiconductors require thinner, uniform dielectric layers. High-purity Niobium Oxide enables precise control over dielectric constants and film thickness at nanoscale.
Next-Generation Display Technologies
OLED and microLED displays are expanding rapidly. Niobium Oxide thin films improve brightness, color uniformity, and durability.
Energy-Efficient and Smart Glass
Low-E and electrochromic smart windows require high-refractive, uniform Niobium Oxide layers for energy-saving glass.
Photovoltaic and Solar Energy
Niobium Oxide coatings enhance light absorption and durability in thin-film solar cells.
Industrial Coating and High-Tech Manufacturing
Automotive sensors, aerospace optics, and laser components increasingly require high-purity Niobium Oxide coatings.
The market for Niobium Oxide rotary targets is expected to grow steadily, driven by innovations in electronics, optics, and energy-efficient technologies.
FAQs
Q1: What is the typical lifespan of a high-purity Niobium Oxide rotary target?
A1: Depending on power density and process parameters, high-purity rotary targets can last 6–12 months, outperforming planar targets by 50–100% while maintaining uniform deposition.
Q2: How does target purity affect thin-film performance?
A2: Higher purity significantly reduces defects and impurities in films. Films from 99.99% pure Niobium Oxide targets show 40–50% fewer defects than 99.9% targets, improving optical clarity and device yield.
Q3: Why choose rotary targets over planar targets?
A3: Rotary targets provide higher material utilization (70–80% vs 20–30%), ±2% thickness uniformity (vs ±5–10%), and stable deposition for large-area substrates.
Q4: Can Niobium Oxide rotary targets withstand high-power deposition?
A4: Yes. High-density sintered Niobium Oxide and well-bonded metal backing tubes allow stable performance in high-power magnetron sputtering without cracking or delamination.
Q5: Are Niobium Oxide targets environmentally safe?
A5: Solid Niobium Oxide is chemically stable and non-toxic. Dust generated during machining should be controlled. Follow local regulations for disposal of used targets.
Q6: What are the emerging applications for Niobium Oxide targets?
A6: High-purity Niobium Oxide targets are increasingly used in microLED displays, 5G RF devices, advanced photonics, and high-efficiency solar cells, reflecting growing demand in high-tech industries.
Other Rotary Targets Showcase
In addition to high-purity Niobium Oxide rotary targets, our company offers a full range of high-performance rotary targets for various industrial applications:

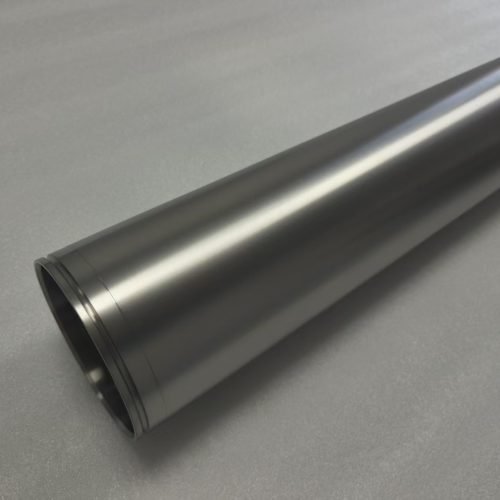

- High-Purity Titanium Rotary Targets – Excellent corrosion resistance and mechanical strength; ideal for aerospace, electronics, and medical coatings.

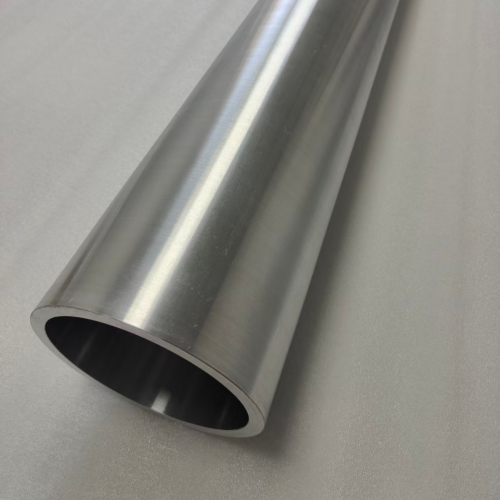

- High-Purity Aluminum (Al) Rotary Targets – High hardness and dielectric properties; suitable for wear-resistant coatings and dielectric films.
- High-Purity Alumina-doped Zinc Oxide Rotary Targets – High refractive index and dielectric performance; used in capacitors, thin-film optics, and electronics.
These rotary targets maintain strict quality control, ensuring high density, low defects, and uniform deposition. Customers can select the material based on specific applications, substrate size, and deposition systems.
Conclusion
High-purity Niobium Oxide rotary targets are essential for modern thin-film deposition, providing:
