IGZO sputtering targets has become an important oxide semiconductor material for thin-film transistor (TFT) and advanced electronic applications because of its high transparency, suitable carrier mobility, and compatibility with large-area thin-film deposition.
In an IGZO sputtering process, the target material is the source of the deposited film. Therefore, the quality of the sputtering target directly affects the composition, defect characteristics, and stability of the resulting IGZO layer.Unlike single-component oxide targets, IGZO sputtering targets contain multiple oxide components, including In₂O₃, Ga₂O₃, and ZnO. Small variations in composition, impurity levels, or ceramic structure may influence thin-film electrical properties and deposition consistency.For this reason, high-quality Indium-Gallium-Zinc Oxide Sputtering Target require not only high purity but also controlled composition, uniform structure, and stable physical properties.
ULPMAT supplies Indium Gallium Zinc Oxide (IGZO) sputtering targets with controlled chemical composition, impurity levels, density, and customized specifications for oxide semiconductor applications.
What Is IGZO Sputtering Target?
IGZO sputtering target is a ceramic oxide semiconductor material used in PVD (Physical Vapor Deposition) systems to deposit IGZO thin films.
The main components of IGZO are:
Indium oxide (In₂O₃)
Gallium oxide (Ga₂O₃)
Zinc oxide (ZnO)
A commonly used composition is:
In₂O₃ : Ga₂O₃ : ZnO = 1 : 1 : 1 mol%
During magnetron sputtering, plasma ions bombard the target surface and transfer atoms from the ceramic target to the substrate. The deposited atoms form an IGZO semiconductor layer for applications such as TFT backplanes, display electronics, oxide semiconductor devices and transparent electronic components.Because the deposited film inherits the elemental composition of the target, controlling IGZO target quality is an important step in achieving consistent thin-film performance.
Why Does IGZO Target Composition Affect Thin Film Performance?
Composition control is one of the most important factors for IGZO sputtering targets.IGZO is not simply a mixture of three oxides. The interaction between indium, gallium, and zinc determines the electrical characteristics of the deposited semiconductor film.
- Indium oxide (In₂O₃) contributes to electron transport and carrier mobility.
- Gallium oxide (Ga₂O₃) helps regulate oxygen-related defects and improves semiconductor stability.
- Zinc oxide (ZnO) influences the structural characteristics and carrier behavior of the material.
During sputtering, atoms from the target are transferred directly into the thin film. Therefore, changes in the In/Ga/Zn ratio can modify the chemical composition and electrical properties of the deposited layer.Research on IGZO targets has shown that different target compositions and phase structures can influence deposition rate, optical properties, morphology, and electrical performance of IGZO films.For this reason, uniform composition throughout the ceramic target is essential for stable sputtering results.
How Do Purity and Impurity Control Influence IGZO Thin Films?
For oxide semiconductor applications, target purity is an important factor in controlling contamination during thin-film deposition. During sputtering, atoms from the target material are transferred directly into the deposited IGZO layer. Therefore, trace impurities in the target may become incorporated into the film and influence defect states, carrier concentration, and electrical stability.In IGZO semiconductor films, electrical characteristics are closely related to defect chemistry, especially oxygen-related defects. Uncontrolled impurities may affect film consistency and lead to variations in:
- Defect concentration
- Electrical properties
- Process repeatability
- Particle generation during deposition
For this reason, controlling trace impurities is essential for maintaining stable IGZO thin-film performance.ULPMAT IGZO sputtering targets are supplied with a purity of 99.99%. Trace impurity levels are controlled according to material quality requirements.Based on ULPMAT quality inspection data, a representative IGZO sputtering target sample showed a total impurity content of 37 ppm, while the specified impurity requirement is controlled at ≤100 ppm.
Actual impurity levels may vary slightly between production batches. Detailed chemical composition and inspection data can be provided according to customer requirements.
Why Do Density and Microstructure Matter for IGZO Sputtering Targets?
Besides chemical composition, the physical structure of ceramic IGZO sputtering targets also influences sputtering stability and deposition consistency.During sputtering, plasma ions continuously bombard the target surface. The density, porosity, and microstructure of the ceramic target affect how uniformly the target is eroded during deposition.
A target with controlled density and uniform microstructure can help reduce abnormal erosion, minimize particle generation, and maintain stable sputtering conditions during long deposition processes.For ceramic oxide targets, density is usually evaluated together with composition uniformity and structural integrity. Excessive porosity or internal defects may lead to unstable sputtering behavior and affect deposition repeatability.
Therefore, target density and microstructure are important quality factors when evaluating IGZO sputtering targets, although final thin-film performance also depends on sputtering parameters such as power, gas atmosphere, oxygen partial pressure, and substrate conditions.

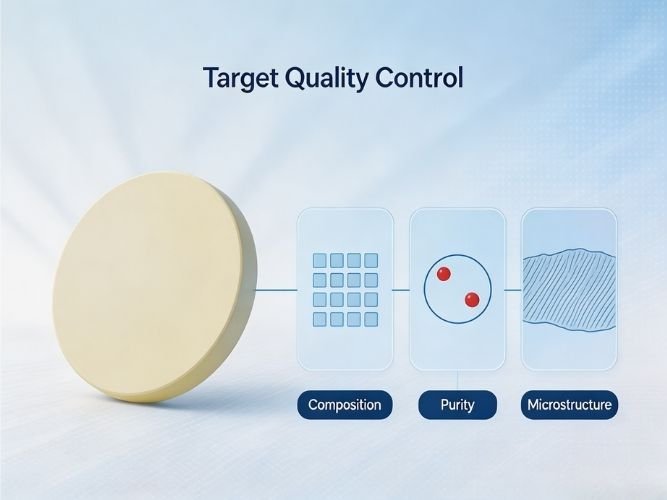

How Does ULPMAT Control IGZO Sputtering Target Quality?
For IGZO sputtering targets, consistent thin-film performance requires control of multiple material factors rather than relying only on purity.ULPMAT evaluates IGZO sputtering targets through comprehensive quality control procedures, including:
| Quality Evaluation | Purpose |
| Chemical composition analysis | Verify In/Ga/Zn ratio consistency |
| Purity testing | Confirm material quality |
| Trace impurity analysis | Control contamination risks |
| Density and structural evaluation | Assess ceramic target integrity |
| Dimensional inspection | Ensure compatibility with sputtering equipment |
For multi-component oxide semiconductor targets such as IGZO, maintaining composition uniformity and material consistency is essential because variations in the target can influence sputtering stability and deposited film properties.
Detailed technical specifications, material characteristics, and quality information are provided in the IGZO sputtering target TDS for customer evaluation.
IGZO Sputtering Target and Thin Film Performance
The relationship between target quality and IGZO thin-film performance can be summarized as:
| Target Factor | Influence on Film |
| Composition uniformity | Controls elemental consistency |
| High purity | Reduces contamination risk |
| Low impurity level | Improves electrical stability |
| High density | Supports stable sputtering |
| Uniform microstructure | Reduces deposition variation |
However, thin film performance depends on target properties and deposition parameters, including sputtering power, gas atmosphere, oxygen partial pressure, and substrate conditions. Reliable IGZO sputtering targets provide a stable source of material, thus avoiding material-related variations during thin film development and production.
Conclusion
FAQs
The quality of an IGZO sputtering target depends on composition uniformity, purity, impurity control, density, microstructure, and dimensional accuracy. A high-quality IGZO target maintains a stable In/Ga/Zn ratio and consistent ceramic structure, which helps achieve stable sputtering performance and reliable IGZO thin-film properties.
Purity is important because impurities from the target can be transferred into the deposited IGZO thin film during sputtering. Controlled impurity levels help reduce contamination risks, minimize defect-related variations, and improve electrical stability and process repeatability in oxide semiconductor applications.
The In/Ga/Zn composition ratio directly influences the electrical and structural properties of IGZO thin films. In₂O₃ contributes to electron transport, Ga₂O₃ helps control oxygen-related defects, and ZnO affects structural characteristics. Therefore, accurate composition control is essential for consistent semiconductor performance.
Density affects sputtering stability, target erosion behavior, and deposition consistency. High-density IGZO sputtering targets with uniform microstructure can reduce particle generation, improve target utilization, and support stable thin-film deposition during long sputtering processes.
Before purchasing an IGZO sputtering target, important specifications include purity, In/Ga/Zn composition ratio, impurity levels, density, dimensions, bonding requirements, and available technical documents such as TDS and quality inspection reports. These parameters help ensure compatibility with sputtering equipment and application requirements.
No. Higher purity reduces contamination risks, but IGZO thin-film performance also depends on composition accuracy, target density, microstructure, sputtering parameters, oxygen partial pressure, and substrate conditions. A high-performance IGZO target requires balanced control of both chemical and physical properties.
References
- 1. Kamiya T., Nomura K., Hosono H. Present status of amorphous In–Ga–Zn–O thin-film transistors. Science and Technology of Advanced Materials, 2010.
- 2. Nomura K. et al. Room-temperature fabrication of transparent flexible thin-film transistors using amorphous oxide semiconductors. Nature, 2004.
