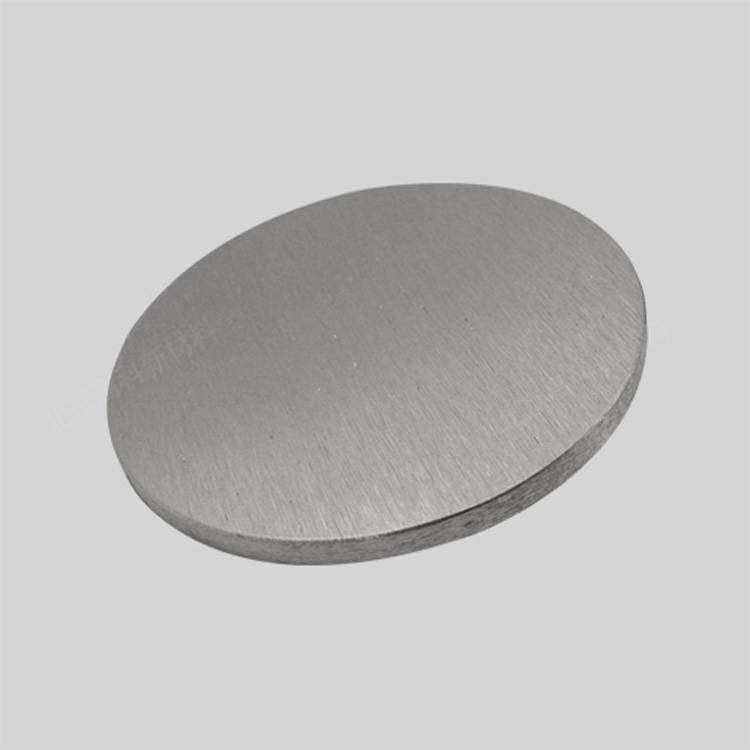

Copper telluride sputtering targets are a key material for depositing semiconductor and thermoelectric functional films.
We supply high-purity targets with precise stoichiometric ratios. Inquiries regarding technical specifications and custom requirements are welcome.
High thermoelectric conversion efficiency
Chemically stable film properties
High material purity grade
Superior and reliable sputtering performance
Thermoelectric devices: Used to fabricate critical thin film layers in high-performance thermoelectric modules, directly converting waste heat into usable electrical energy.
Photovoltaic Absorber Layer: Serves as an alternative absorber material for novel thin-film solar cells, exhibiting unique photoelectric response characteristics.
Phase Change Memory Material: Utilized in advanced phase change memory (PCM) devices, leveraging its rapid and stable crystalline-amorphous transitions for data storage.
Infrared Detection and Sensing: Deposited films enable fabrication of photodetectors and sensing elements sensitive to specific infrared wavelength bands.
Q1: What are the main characteristics of copper telluride thin films?
A1: They exhibit excellent thermoelectric properties, a narrow bandgap, and sensitivity to infrared light, making them suitable for energy conversion and detection applications.
Q2: Is the stoichiometric ratio (Cu:Te) of the target material adjustable?
A2: Yes, we can prepare target materials with different stoichiometric ratios, such as CuTe or Cu₂Te, according to your research or process requirements.
Q3: What are the requirements for the sputtering environment when using this target material?
A3: Controlled atmosphere is typically required, especially during reactive sputtering where precise control of reaction gas partial pressures (e.g., nitrogen, oxygen) is essential to obtain the target film.
Q4: How is its thermoelectric performance evaluated?
A4: Primarily by measuring the Seebeck coefficient, electrical conductivity, and thermal conductivity of the deposited film, ultimately calculating its figure of merit (ZT value).
Each batch is supplied with:
Certificate of Analysis (COA)
Technical Data Sheet (TDS)
Material Safety Data Sheet (MSDS)
Third-party testing reports available upon request
We specialize in compound semiconductor targets. Leveraging advanced fabrication techniques and stringent quality management systems, we ensure exceptional performance consistency and reliability in every target. Committed to delivering professional technical support and customized solutions, we serve as your reliable partner for pioneering thin-film technology research and applications
Chemical Formula: CuTe
Molecular Weight: 159.56 g/mol
Appearance: Black, dense target material
Density: 6.2 g/cm³
Melting Point: 1,050 °C (before decomposition)
Crystal Structure: Hexagonal
Inner Packaging: Vacuum-sealed bags and boxed to prevent contamination and moisture.
Outer Packaging: Cartons or wooden crates selected based on size and weight.
